Plant MO 640 FS / RIBA 206

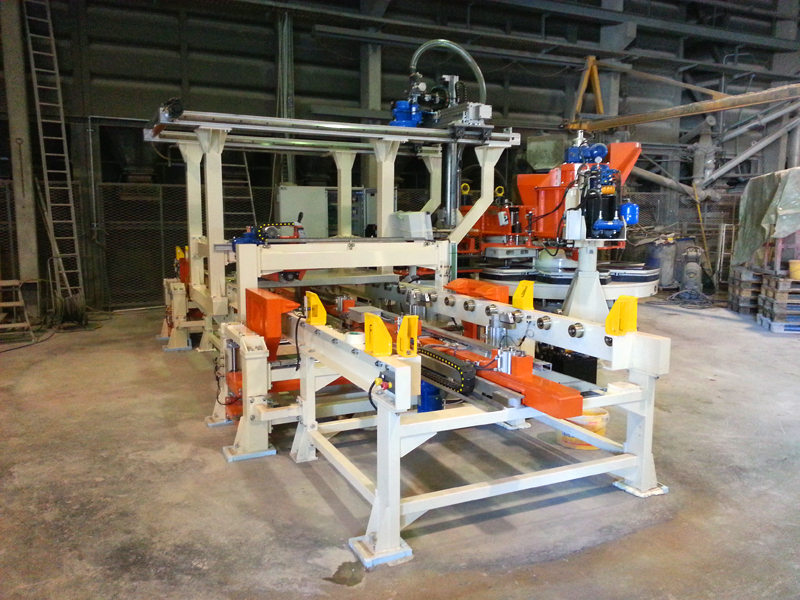

The Horizontal Automatic Tile Handling System has been designed for automatic transfer of steel trays containing green and dried tiles.
It carries out in automatic mode all the operations, which characterise the production cycle for the handling of fresh tiles, which are fed to the drying line, and subsequently of dried tiles, which are fed to the sizing, grinding-polishing and/or shotblasting line or directly to the palletization station.

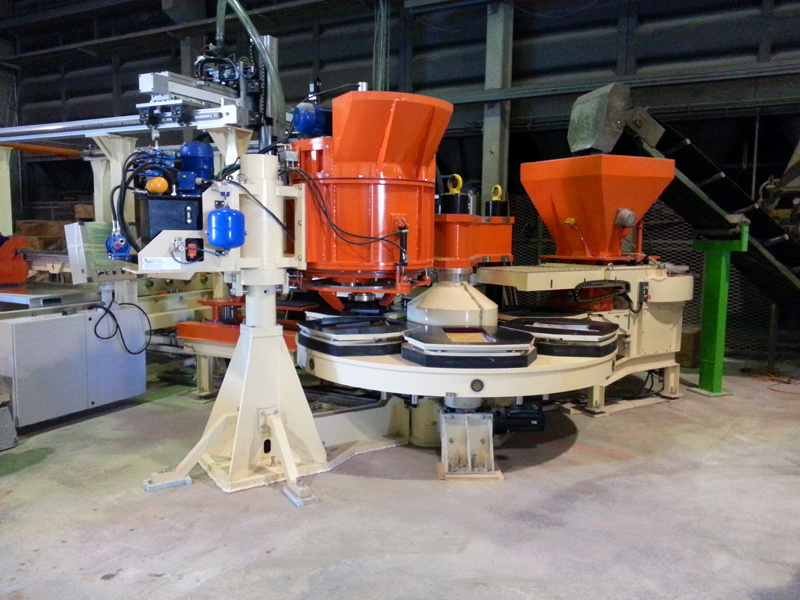

Machine with 6 stations, extremely compact, suitable for the production of traditional grit tiles, mosaic tiles and special raised tiles.
The maximum height of tile to be manufactured is 60 mm (80-100 mm as optional).
Made up of a main electric welded steel frame. It consists of the following main machine components:
Table rotation gear-motor, equipped with brushless motor and servodrive allowing fluid and very precise movements during turning table phases.
Independent hydraulic unit, sized for 300 bar operating pressure, for feeding the press cylinder and the demoulding cylinder. Hydraulic demoulding device.
Self-contained electric motor vibrators for feeding the three vibration stations and levelling the material inside the mould.
Automtic dosing unit for preparing the first layer, designed for eliminating all possible division among the components of the mixture.
Automatic underlay loader made from electric welded steel. This device is powered by an inverter controlled ratio-motor. Pneumatic screed adjustment for proper cleaning of frame surfaces.

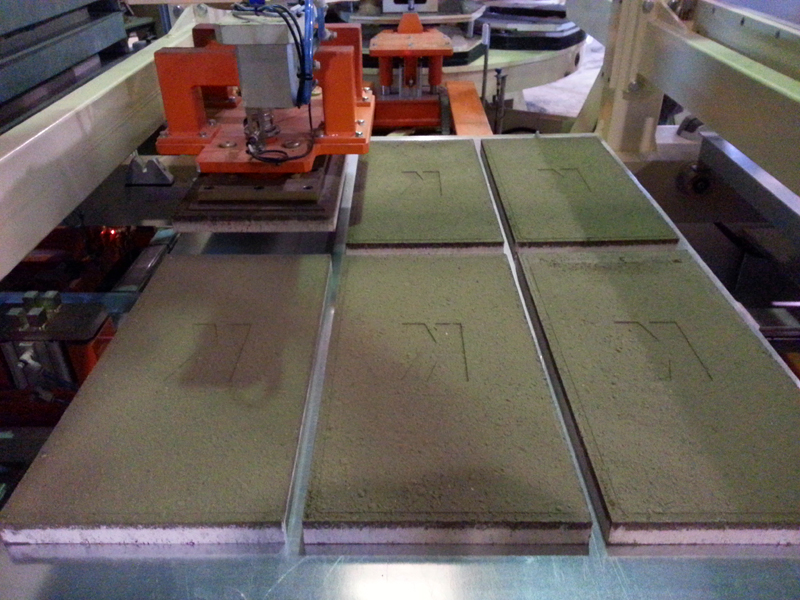

Pick-up device. Motion device rod / crank and slotted link. Pneumatic approach device for fresh product delivery without cracks.
Independent monitor for operation process control with touch screen.
Independent main electric panel for manual start and exclusion of production processes and maintenance.
PLC operation logic of Siemens or Allen Bradley type.
Pneumatic device for control and operation of frame lifting cylinders.
In compliance with all the general requirements and EEC directives relevant to operator’s safety and hygiene.
